Hooks

iTerm2 provides a mechanism called hooks that allows your Python code to modify the app’s default behavior.

The following hooks are defined:

  • Session title provider

  • Status bar provider

Begin by reading about RPCs as described in RPCs. Hooks are similar, but each uses a different decorator.

Session Title Provider

A session title provider is an RPC that accepts information about the current session as input and returns a string to be shown in the tab bar or window title.

Here’s a minimal example that takes the “auto name” of the session and converts it to upper case. The auto name is the “normal” session name. It defaults to the profile name and can be changed by the control sequence that sets the title, by a trigger that sets the title, or by the user editing the session name in the Edit Session window. to be the upper-case version of the session name.

#!/usr/bin/env python3.7

import iterm2

async def main(connection):
    @iterm2.TitleProviderRPC
    async def upper_case_title(auto_name=iterm2.Reference("autoName?")):
        if not auto_name:
            return ""
        return auto_name.upper()

    await upper_case_title.async_register(
        connection,
        display_name="Upper-case Title",
        unique_identifier="com.iterm2.example.upper-case-title")

iterm2.run_forever(main)

Download

The display_name is shown to the user in Profile Preferences.

The unique_identifier is a string that identifies this title provider. The algorithm and function signature and function name may change over time, but as long as the unique identifier remains the user will not need to update their preferences.

When this script is running and the user navigates to Prefs > Profiles > General and opens the Title menu, your title provider will appear there with this name.

When does the RPC get run? It is always run once when it gets attached to a session. Thereafter, it is run when any variable with an iterm2.Reference as a default value of an argument of your RPC changes.

If some variable might not be defined, you should put a ? after its name to signify that a value of None is allowed. Variables are detailed in Scripting Fundamentals.

Force Reevaluation

If you want to change the title in response to some external action, such as a timer, network request, or user action, you must cause a user-defined variable to change. Here is a full working example that sets the session title to its age in seconds:

import asyncio
import iterm2

async def main(connection):
    app = await iterm2.async_get_app(connection)
    tasks = {}

    async def redraw_title_provider_periodically(session_id):
       try:
            age = 0
            session = app.get_session_by_id(session_id)
            while True:
                await asyncio.sleep(1)
                # When the session ends, this will raise an exception.
                await session.async_set_variable(
                    "user.session_age_in_seconds", age)
                age += 1
       except Exception as e:
           traceback.print_exc()
       finally:
            del tasks[session_id]

    @iterm2.TitleProviderRPC
    async def age_in_seconds_title(
            session_id=iterm2.Reference("id"),
            age=iterm2.Reference("user.session_age_in_seconds?")):
        if session_id not in tasks:
            wake_coro = redraw_title_provider_periodically(session_id)
            tasks[session_id] = asyncio.create_task(wake_coro)
        return str(age)

    await age_in_seconds_title.async_register(
        connection,
        display_name="Age in Seconds",
        unique_identifier="com.iterm2.example.age-in-seconds")

iterm2.run_forever(main)

Download

Installation

Since a title provider is a long-running daemon, you’ll want to put it in ~/Library/Application Support/iTerm2/Scripts/AutoLaunch folder.

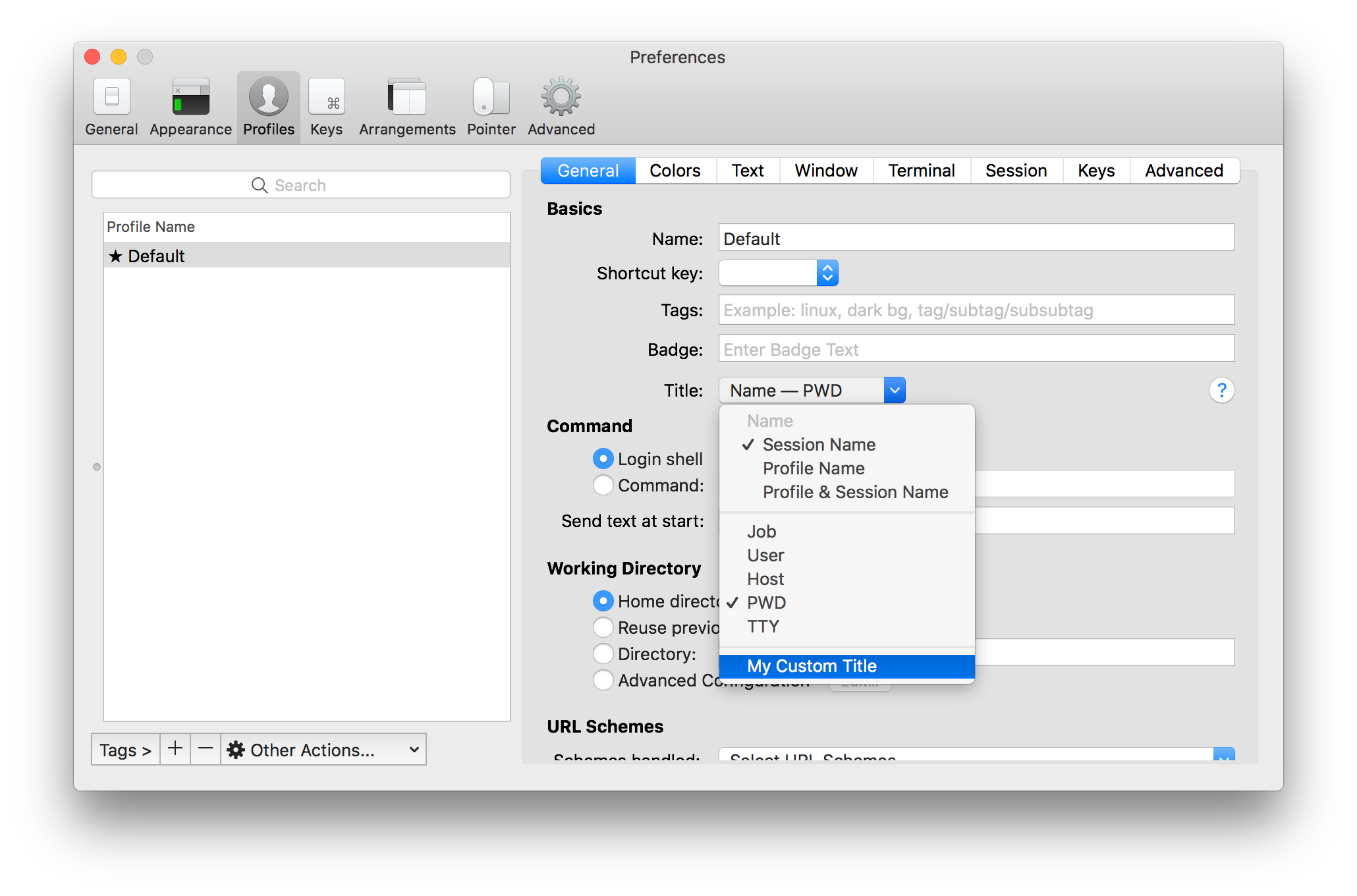

Next, you need to configure your session’s profile to use the hook. Once it’s been registered properly it will appear as an option in Preferences > Profiles > General > Title. Select it there:

../_images/choose_custom_session_title.png

Custom Status Bar Component

A custom status bar component is another kind of hook. Like a title provider, it lives in a long-running daemon. It registers an RPC that provides the text to display in the status bar component. It may also register a second RPC to handle clicks in the status bar component.

Here’s a simple status bar component that shows whether mouse reporting is on:

import asyncio
import iterm2

async def main(connection):
    component = iterm2.StatusBarComponent(
        short_description="Mouse Mode",
        detailed_description="Indicates if mouse reporting is enabled",
        knobs=[],
        exemplar="[mouse on]",
        update_cadence=None,
        identifier="com.iterm2.example.mouse-mode")

    # This function gets called when the mouseReportingMode variable
    # changes.
    @iterm2.StatusBarRPC
    async def coro(
            knobs,
            reporting=iterm2.Reference("mouseReportingMode")):
        if reporting < 0:
            return " "
        else:
            return "🐭"

    # Register the component.
    await component.async_register(connection, coro)

iterm2.run_forever(main)

When this script is running, a new status bar component becomes available in Prefs > Profiles > Session > Configure Status Bar.

Like a title provider, the registered function will be called when its references change. The string it returns will go in the status bar.

Status bar components can also be invoked periodically, by passing a number of seconds to the update_cadence argument of StatusBarComponent’s initializer.

Status bar components can also define configuration settings, called knobs.

For more information, see iterm2.StatusBarComponent. There are also a number of status bar components in the Example Scripts.

Continue to the next section, Troubleshooting.
